If the user wishes to make the Generator, “A Design for a Generator” gives a complete Bill of Materials list – we will supply the magnets (we recommend a minimum of 4 packs of EP646; ideally 8 packs), adhesives and magnetic test equipment (compasses and polarity checkers); the user is expected to source the other materials.
The recommended list of products to select from, based on the stated Bill of Materials, is given below.
|Part No.||Size||Grade||Pull (kg)|

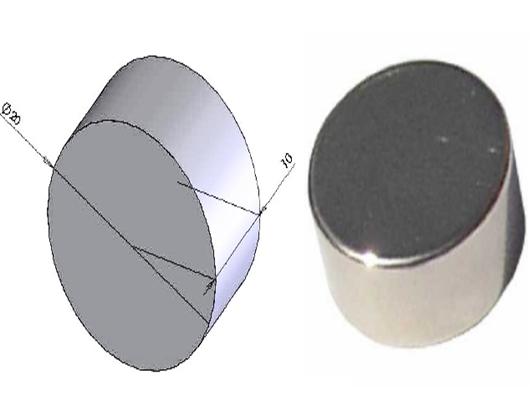

|EP646||20mm dia x 10mmA||N42 - NiCuNi plated||11.0|
|EP336||20mm dia x 5mmA||N42 - NiCuNi plated||6.40|
|MPI-1||140mm long||Electronic Polarity Checker with Instructions||N/A|
|E500||10mm x 5mm x 75mmA||Alnico Magnet Polarity Tester||500 Gauss|
|DC204||20mm diameter with 10 degree increments||Compass||N/A|
|IS300||30mm diameter with 5 degree increments||Compass||N/A|
|2241-20||Metal, Plastic, Rubber - 20ml||Cyanoacrylate adhesive||Adhesive|
|2610-20||Wood, Leather, Cardboard - 20ml||Cyanoacrylate adhesive||Adhesive|
