Deep Pot Magnets
£4.22 – £15.21
| Part # | Diameter | Depth | Mounting Type | Hole Diameter | Hole Type | Pull (Kgs) | Coating | Material | Package Quantity | Price | Quantity | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAG829 | 9.5 mm | 15 mm | Internal Threaded Mounting | M3 | Tapped | 1kg | Painted | Alnico | 1 | £4.22 |
|
||||||||||||||||||||||||||||
| MAG830 | 12.7 mm | 16 mm | Internal Threaded Mounting | M3 | Tapped | 2kg | Painted | Alnico | 1 | £4.51 |
|
||||||||||||||||||||||||||||
| MAG831 | 17.5 mm | 16 mm | Internal Threaded Mounting | M6 | Tapped | 2.5kg | Painted | Alnico | 1 | £5.09 |
|
||||||||||||||||||||||||||||
| MAG832N | 20.5 mm | 19 mm | Internal Threaded Mounting | M6 | Tapped | 4kg | Painted | Alnico | 1 | £5.72 | |||||||||||||||||||||||||||||
| MAG833 | 27 mm | 25 mm | Internal Threaded Mounting | M6 | Tapped | 6kg | Painted | Alnico | 1 | £5.08 |
|
||||||||||||||||||||||||||||
| MAG834 | 35 mm | 30 mm | Internal Threaded Mounting | M6 | Tapped | 14kg | Painted | Alnico | 1 | £15.21 |
|
||||||||||||||||||||||||||||
Description
Buy Deep Pot Magnets online with Bunting – eMagnets™
A deep pot magnet offers high holding forces on parts that are thick and clean with a good surface finish.
To make a jig or fixture magnetic, simply drill a flat bottomed hole and a central fixing hole, push the deep pot magnet into it and secure tightly from underneath with a cap screw.
The magnets magnetic face can now be ground flush with the surface of the fixture.
Additional information
| Weight | N/A |
|---|---|
| Diameter | 12.7 mm, 17.5 mm, 20.5 mm, 20.5mm, 27 mm, 35 mm, 9.5 mm |
| Depth | 15 mm, 16 mm, 19 mm, 19mm, 25 mm, 30 mm |
| Mounting Type | Internal Threaded Mounting |
| Hole Diameter | M3, M6 |
| Hole Type | Tapped |
| Pull (Kgs) | |
| Coating | |
| Material | Alnico |
| Package Quantity | 1 |

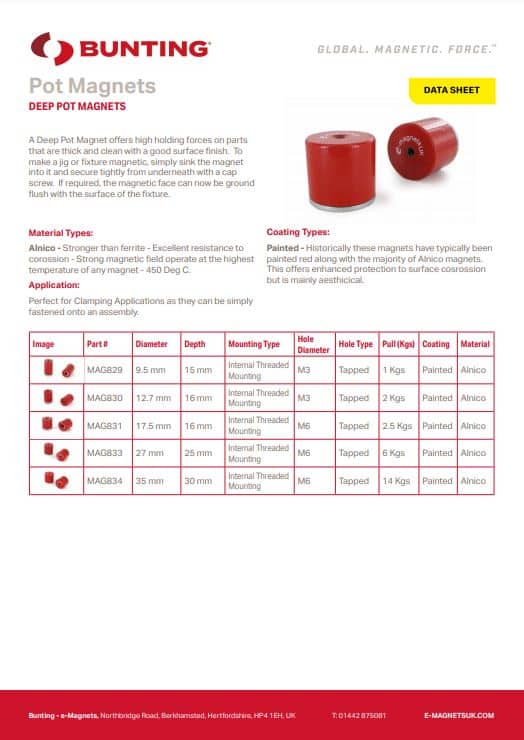

Data Sheet
