Pot Magnet Threaded Through Hole

Pot Magnets with Threaded Through Hole

Buy Pot Magnets with Threaded Through Hole online with e-Magnets™

The Pot Magnet with Threaded Through Hole Mounting consists of a steel disc with a ring milled out for a ring magnet to be inserted plus a tapped through hole to allow a M4, M6 or M8 threaded bar or bolt to be screwed through. The design is compact and extremely robust. The through hole allows the possibility of a bolt or threaded bar to be screwed past the magnet face to prise the Pot Magnet with Threaded Through Hole Mounting away from the structure to which it is magnetically held against.

The Pot Magnet with Threaded Through Hole Mounting uses ferrite magnets and the steel casing is zinc or chrome plated for corrosion protection. The ferrite Pot Magnet can be used up to +180 degrees C but may start to show some signs of weakening (demagnetisation) when used in sub-zero conditions e.g. -10 to -20 deg C but the actual design and application determines at what temperature demagnetisation may be noticed.

We also offer a Pot Magnet with Threaded Through Hole Mounting with a Stainless Steel (SS304) casing. This does not require any plating and is naturally corrosion resistant.

The Pot Magnet with Threaded Through Hole Mounting range exists in 25mm to 80mm diameter size with maximum pull forces from 3.6kg up to 55kg.

It is possible to produce customer specific Pot Magnets with Threaded Through Hole Mounting – we can give you a price upon request although a minimum order quantity may exist. We also have an extended range of Pot Magnets in brochure format which we can send upon request (minimum order quantities would also apply).

£1.77£60.00

SKU: N/A Category:
Part #DiameterDepthHole DiameterHole TypePull (Kgs)CoatingMaterialPackage QuantityPriceQuantity
E103125 mm7 mmM4Threaded Through3.6ZincFerrite1 £1.96
Quantity Discount Pricing
Prices per number of Packs
MinMax£ / Pack £ / Magnet
19£1.96£1.9600
1024£1.76£1.7600
2549£1.67£1.6700
50£1.47£1.4700
E103250 mm10 mmM6Threaded Through17ZincFerrite1 £4.79
Quantity Discount Pricing
Prices per number of Packs
MinMax£ / Pack £ / Magnet
19£4.79£4.7900
1024£4.31£4.3100
2549£4.07£4.0700
50£3.59£3.5900
E103363 mm14 mmM8Threaded Through35ZincFerrite1 £3.92
Quantity Discount Pricing
Prices per number of Packs
MinMax£ / Pack £ / Magnet
19£3.92£3.9200
1024£3.53£3.5300
2549£3.33£3.3300
50£2.94£2.9400
E103480 mm20 mmM8Threaded Through55ZincFerrite1 £6.53
Quantity Discount Pricing
Prices per number of Packs
MinMax£ / Pack £ / Magnet
19£6.53£6.5300
1024£5.88£5.8800
2549£5.55£5.5500
50£4.90£4.9000
E104090 mm18 mmM10Threaded Through35304 Stainless SteelFerrite1 £60.00
Quantity Discount Pricing
Prices per number of Packs
MinMax£ / Pack £ / Magnet
14£60£60.0000
59£55.00£55.0000
1024£50.00£50.0000
25£40.00£40.0000
E104332 mm7 mmM4Threaded Through7.5ZincFerrite1 £1.77
Out of Stock
Quantity Discount Pricing
Prices per number of Packs
MinMax£ / Pack £ / Magnet
19£1.77£1.7700
1024£1.60£1.6000
2549£1.51£1.5100
50£1.33£1.3300

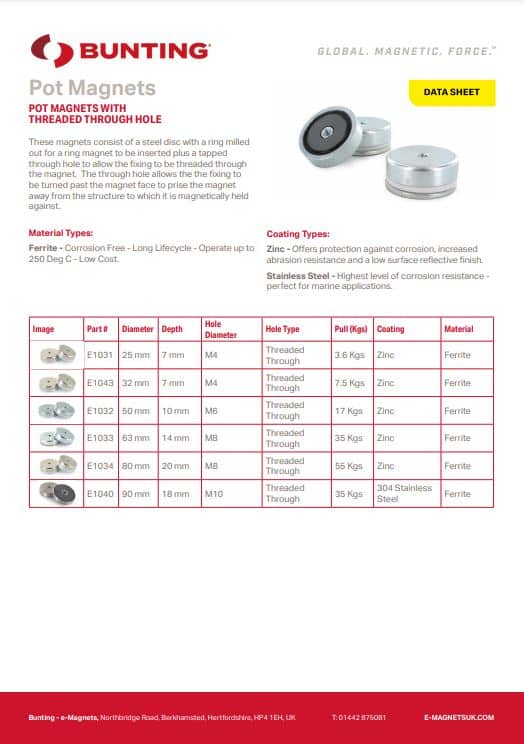

Data Sheet

* Pull force, up to the value stated.
