Shaker Magnetic Catch
A Magnetic Catch specifically designed for Shaker style kitchen cabinets. Quick & easy to install, with only one screw fixing. The new catch plate with leather buffer provides the almost silent closing of a kitchen cabinet door and is available with your company’s own branding so that you can subtly leave your mark on every kitchen installation.
The Pull (Kgs) figure is a nominal pull force.
Showing all 5 results
Buy Shaker Magnetic Catches online with Bunting – eMagnets™

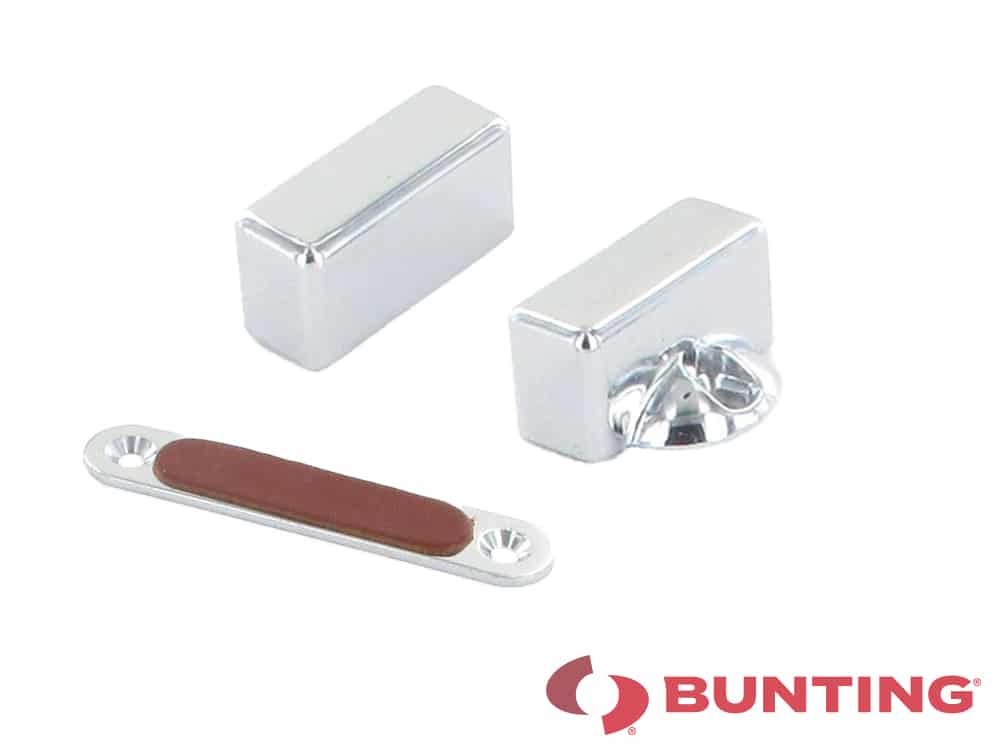

The Shaker Magnetic Catch is designed specifically for handmade in-frame doors for bespoke kitchen cabinets.
Length: 29mm
Depth: 20mm
Height: 15mm
Finish: Chrome
Magnet Strength: 5kg
Fixing requires only one No. 4 woodscrew; raised bosses on the mounting surface prevent any rotation, even though only one screw is employed. Three different styles of catch plate are available for the Shaker Magnetic Catch, including a leather-clad catch plate that dampens any noise from the closing of the catch. The three catch plate types are:
• Standard blank catch plate;
• Catch plate with a leather buffer;
• Catch plate with a branded embossed leather buffer (Find out more information by clicking here)
The branded-embossed leather buffer allows a company’s logo or name to appear on the magnetic catch. There is a one-off tooling charge for the embossing.
Elite IF2:
The Elite IF2 in frame range of catches are designed to fit in the frame and in the door of a cabinet or unit and provide a flush finish. The three options available are for a knock in catch which is suitable when not much depth of wood is available behind the catch, a spiked knock in catch, suitable when depth of fixing is not an issue and catch which is glued in place. An opposite pole magnetic catch is then fitted opposite to provide a 2kkg holding force across a 1mm gap. The catch can be covered with a thin veneer to hide it and offers a very soft, but positive close. With none of the sound associated with a normal magnetic catch.
Elite IF4:
The Elite IF4 in frame magnetic catches are designed to fit in the frame and in a larger door of a cabinet or unit and provide 4kg of holding force across a 1mm gap, with a flush finish. These catches are fitted with a spike to ensure a positive fixing when fitted into a predrilled hole. An opposite pole magnetic catch is then fitted opposite to provide the 4kg of holding force. The catch can be covered with a thin veneer to hide it and offers a very soft, but positive close. With none of the sound associated with a normal magnetic catch.
The Pull (Kgs) figure is a nominal pull force.
Please contact us for volume enquiries.
