Ferrite Limpet Pots
Buy Ferrite Limpet Pots online with e-Magnets™
Limpet Pot Magnets provide high performance and low profile.
The Limpet Pot Magnet incorporates a ferrite magnet to give a superior hold on surfaces which are dirty and uneven.
The Limpet Pot Magnet has a maximum operating temperature of 180 deg C. The maximum pull force ranges from 6kg up to 55kg. Each Limpet Pot Magnet is supplied with a removable hook.
Common applications include holding back doors and gates or any other application which needs a solid, positive and reliable magnetic grab.
£7.52 – £26.23
| Part # | Diameter | Depth | Mounting Type | Hole Diameter | Hole Type | Pull (Kgs) | Coating | Material | Package Quantity | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MAG890 | 46 mm | 11 mm | Internal Threaded Mounting | M6 | Tapped | 6kg | Painted | Alnico | 1 | £7.52 | |
| MAG891 | 55 mm | 11 mm | Internal Threaded Mounting | M6 | Tapped | 16kg | Painted | Alnico | 1 | £7.95 | |
| MAG892 | 66 mm | 11 mm | Internal Threaded Mounting | M6 | Tapped | 25kg | Painted | Alnico | 1 | £9.36 | |
| MAG896 | 76 mm | 12.5 mm | Internal Threaded Mounting | M6 | Tapped | 33kg | Painted | Alnico | 1 | £13.63 | |
| MAG897 | 100 mm | 15 mm | Internal Threaded Mounting | M6 | Tapped | 55kg | Painted | Alnico | 1 | £26.23 |

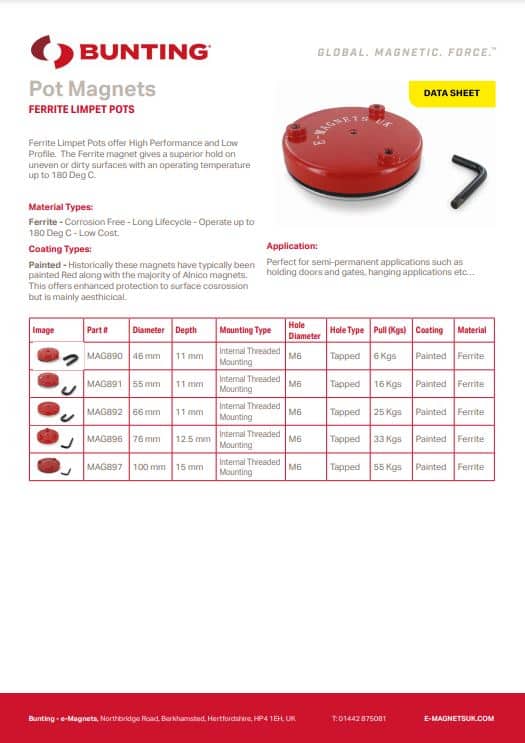

Data Sheet
