Elite IF1, IF2 and IF4 Magnetic Catches

Buy Elite IF1, IF2 and IF4 Magnetic Catches online with Bunting – eMagnets™
Elite IF1:

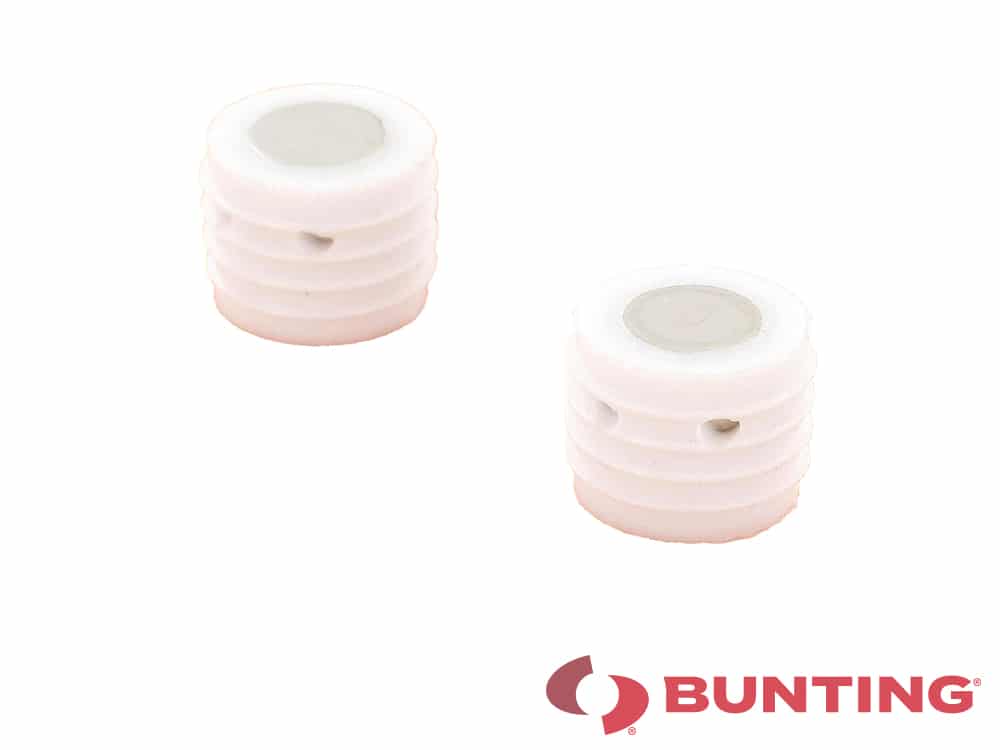

The Elite IF1 knock in magnetic catch is designed to fit in the frame and in the door of a cabinet or unit and provide a flush finish. The design allows for a Diam10mm hole to be drilled and the catch body simply is knocked into placed with the design holding the catch in place, the opposite pole catch is then fitted opposite to provide a 1kg holding force across a 1mm gap. The catch can be covered with a thin veneer to hide it and offers a very soft, but positive close. With none of the sound associated with a normal magnetic catch. Pole pieces are included.

Elite IF2:

The Elite IF2 in frame range of catches are designed to fit in the frame and in the door of a cabinet or unit and provide a flush finish. The three options available are for a knock in catch which is suitable when not much depth of wood is available behind the catch, a spiked knock in catch, suitable when depth of fixing is not an issue and catch which is glued in place. An opposite pole magnetic catch is then fitted opposite to provide a 2kkg holding force across a 1mm gap. The catch can be covered with a thin veneer to hide it and offers a very soft, but positive close. With none of the sound associated with a normal magnetic catch.

Elite IF4:

The Elite IF4 in frame magnetic catches are designed to fit in the frame and in a larger door of a cabinet or unit and provide 4kg of holding force across a 1mm gap, with a flush finish. These catches are fitted with a spike to ensure a positive fixing when fitted into a predrilled hole. An opposite pole magnetic catch is then fitted opposite to provide the 4kg of holding force. The catch can be covered with a thin veneer to hide it and offers a very soft, but positive close. With none of the sound associated with a normal magnetic catch.

The Pull (Kgs) figure is a nominal pull force.

Please contact us for volume enquiries.
